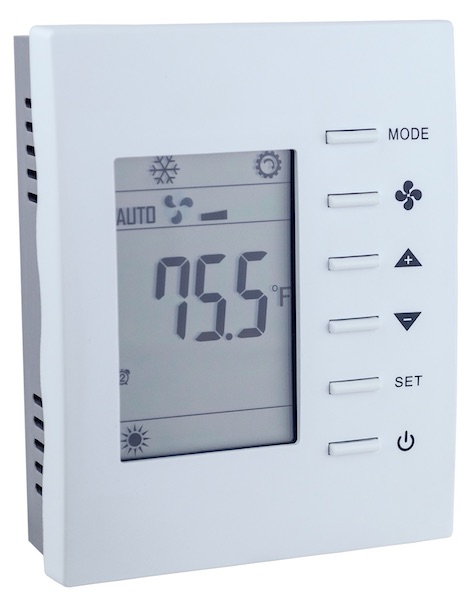

BASstat

The BASstat series of BACnet-compliant wired or wireless communicating thermostats ensure effortless integration into BACnet MS/TP (EIA-485) networks. These thermostats are suited for single or multi-stage heating, cooling and ventilation binary output control applications such as RTU or AHU. Configurable control algorithm parameters allow adaptability to the specific application. Adaptive control algorithm applied to multi-stage on/off control saves energy and ensures seamless comfort for the occupants. Built in temperature sensor, input for remote temperature sensor, or temperature override network command from Building Automation System. Occupancy status can be set from thermostat buttons or over the BACnet network. Thermostat buttons are optionally lockable to prevent unauthorized control. Digital display with graphical icons is easy to read and understand.


ModelsBAST-221C-B2,
BAST-421A-B2
Versions1.40
ProfileBACnet Application Specific Controller (B-ASC)
PICS
BTL ListingBTL Listing Document - Product Listed: September 2014
Certificate
