OptiCore™ Compact Gateway

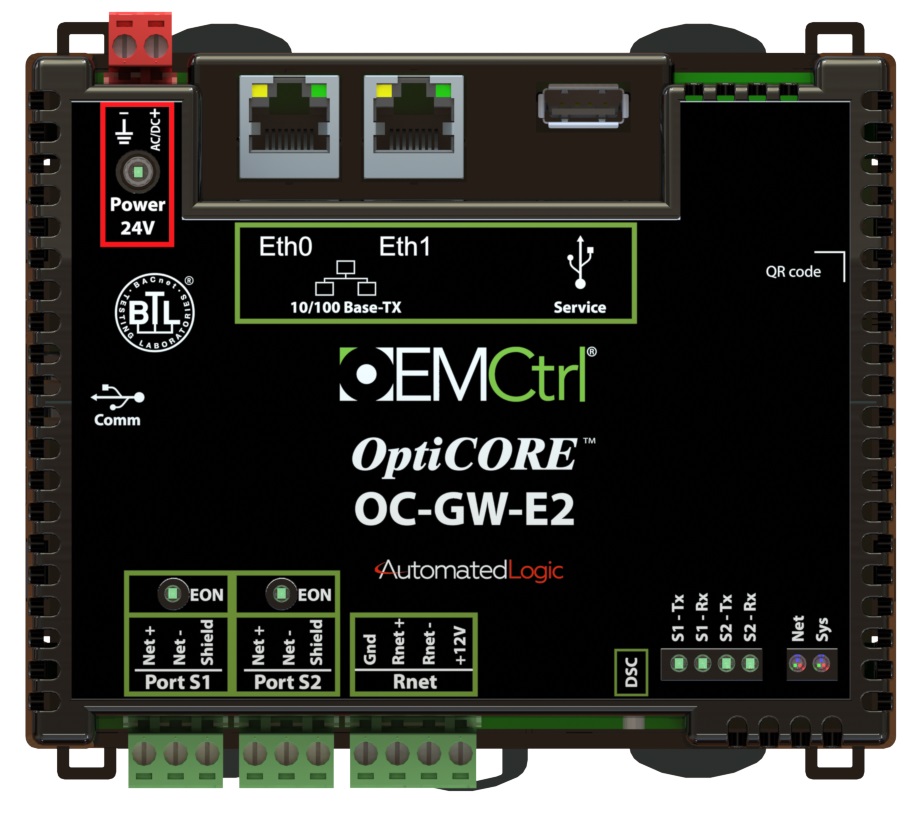

The OptiCore™ Compact Integrator is a high-performance BACnet router which routes BACnet traffic between data links such as BACnet/IPv4/IPv6, BACnet/Ethernet, and BACnet/MS/TP. The OC-GW-E2 is also a fully programmable integration gateway capable of executing complex control strategies across hundreds of individual, custom programs and advanced integration across a broad range of protocols. It features two 10/100 Mbps Ethernet ports for daisy-chain deployment of BACnet/IPv4/IPv6/Ethernet, a high-speed EIA-485 port for MS/TP, a second optically Isolated EIA-485 port for MS/TP, and a USB port for configuration and recovery.


ModelsOC-GW-E2
Versions108.06.20169
ProfileBACnet Gateway (B-GW)
PICS
BTL ListingBTL Listing Document - Product Listed: February 2025
Certificate
