Conquest II Controller Family

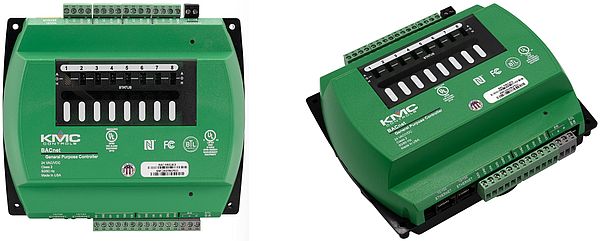

KMC Conquest II BAC-5901 general-purpose controllers are designed to control building systems and HVAC equipment. Integrated alarming, scheduling, and trending enable these BACnet Building Controllers to be powerful edge devices for the modern smart building ecosystem. Network connection options are MS/TP terminals and Ethernet jacks.

The controllers provide 10 inputs (2 temperature sensor inputs and 8 universal software-configurable analog, binary, or accumulator inputs) and 8 universal software-configurable analog or binary outputs. Optional I/O expansion modules and output override boards provide additional capabilities.

Controllers feature easy-to-navigate, menu-driven setup choices using KMC Conquest STE-9000 series NetSensor™ digital sensors, which can be installed permanently as room sensors or used temporarily as a service tool. Alternatively, controller properties can be quickly configured while unpowered using a smart phone or tablet with NFC the KMC Connect Lite™ app.

These controllers are fully programmable to meet the most demanding building automation requirements. Custom configuration and programming (using wizards for application programming selection/configuration) are available using KMC Connect™ software and the KMC Converge™ module for Niagara Workbench, and KMC Converge and TotalControl™ software provide custom graphical web page capability (hosted on a remote web server) as a custom user interface for controllers.

Models	BAC‑5901ACE, BAC‑5901AC
Versions	R1.0.0.0
Profile	BACnet Building Controller (B-BC)
PICS
BTL Listing
Certificate
