DDC4000e

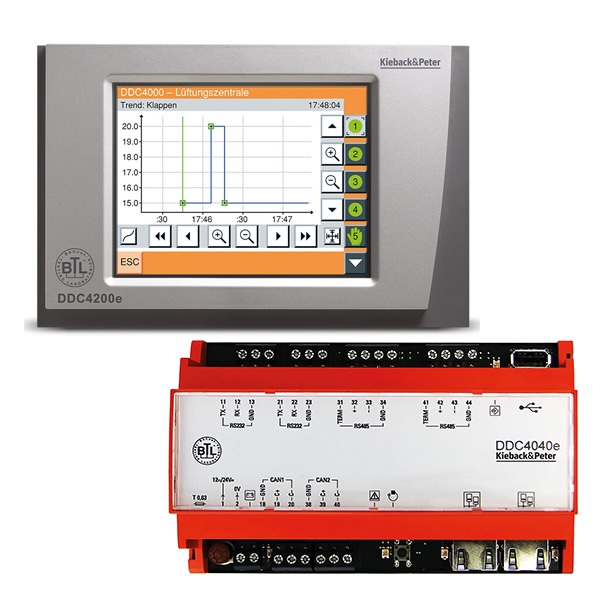

DDC4000e Controller with Operator Function Application
■ Standalone controller with operator function for closed-loop and open-loop control, optimizing and monitoring functions
■ User-defined operation via plant structures which can be individually created
■ Customizable plain text for every parameter
■ Closed-loop control plants for ventilation, heating and PID can be expanded with software objects
■ PLC functions, free and as fixed macros (hardware objects)
■ Software objects for increasing energy efficiency and energy optimization
■ Communication – Via TCP/IP, Ethernet to enable use of the existing infrastructure – Built-in remote control via PC with browser without additional software or mobile end devices – Native BACnet in accordance with DIN EN ISO 16484-5, BACnet/IP, BACnet/SC and BACnet MS/TP
■ 2 buses (CAN-based), configurable for switch cabinet bus or fieldbus for connecting fieldbus modules or switch cabinet bus modules
■ Error message memory, event logging with date and time, incoming and outgoing messages are saved
■ Forwards messages to printers, SMS and e-mail.
■ Trend value memory for max. 100.000 trend points.
■ Embedded Linux operating system for proven, stable use
■ Constant system monitoring of the bus communication and all connected DDC components, bidirectional data exchange possible.

Models	DDC4200e, DDC4400e, DDC4002e, DDC4020e, DDC4040e
Versions	1.23.4
Profile	BACnet Building Controller (B-BC)
